WG-TS-45MM-T22-RD External Turbo Manifold Wastegate

greatparts

WG-TS-45MM-T22-RD External Turbo Manifold Wastegate

Availability: In stock

Product type:

Vendor: greatparts

Regular price $0.00 $81.60

High Strength Cast Body; 45mm Stainless Steel Valve Fits any 45mm Standard V-Band Wastegate Port; Anodized Aluminum Top Finish Weldable Flange V-Band...

Subtotal: $81.60

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Catalog
SHOP

Tags:

Guaranteed safe checkout:

files/paymentmethods-ezgif.com-avif-to-png-converter.png

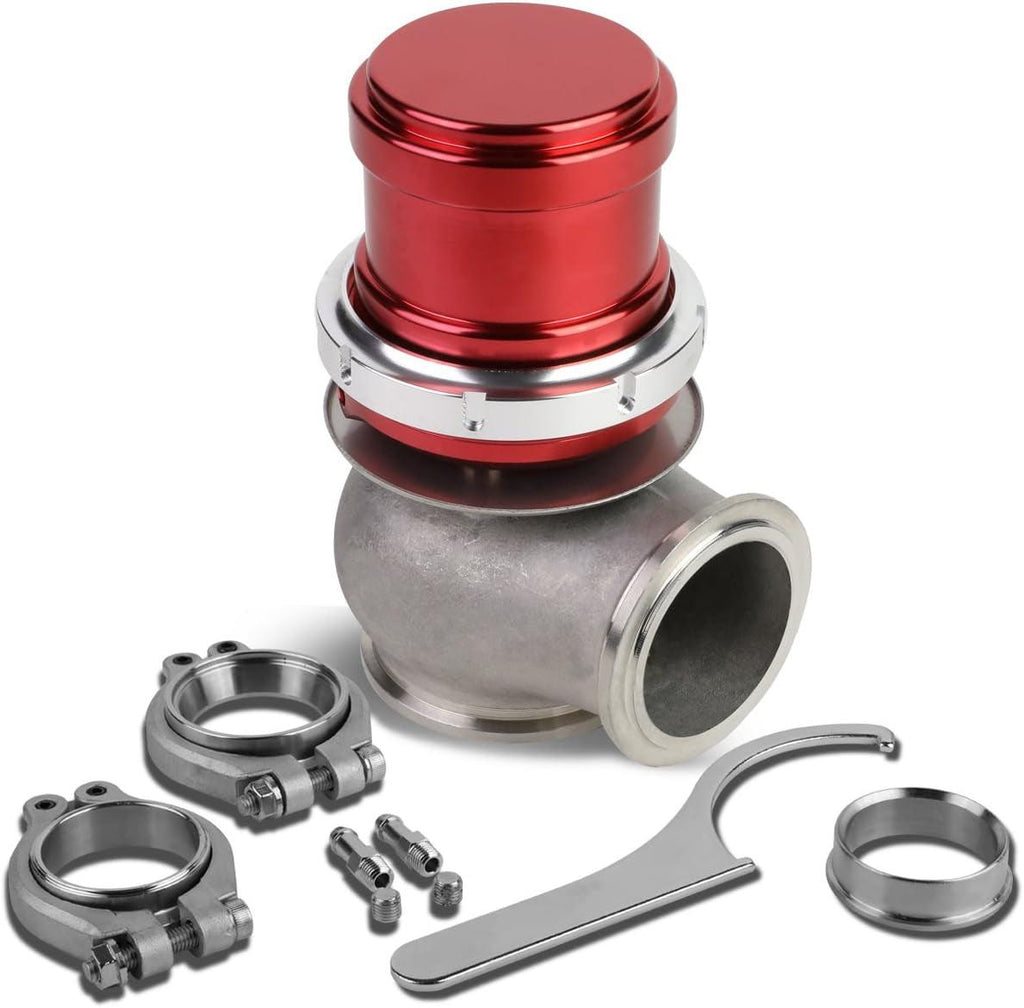

High Strength Cast Body; 45mm Stainless Steel Valve

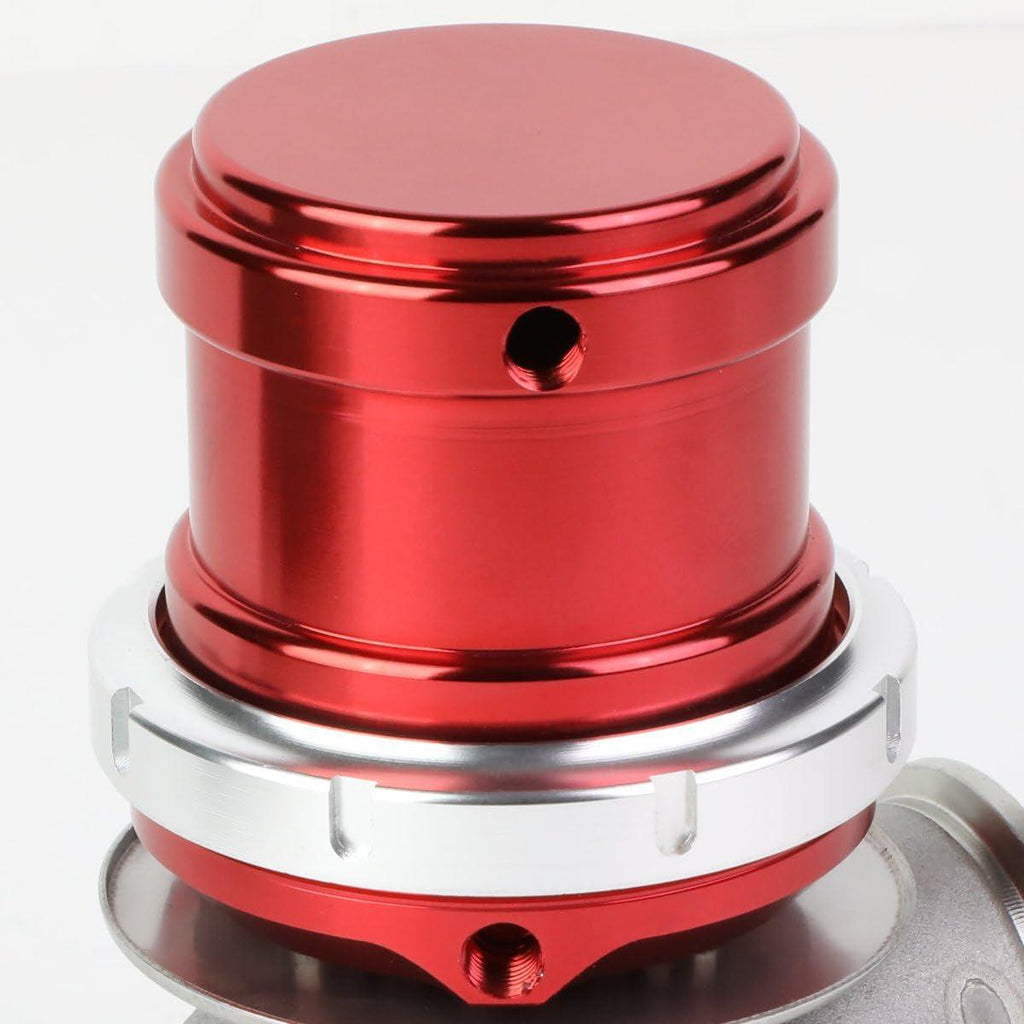

Fits any 45mm Standard V-Band Wastegate Port; Anodized Aluminum Top Finish
Weldable Flange V-Band Flange for Manifold Downpipe (Fits 1-7/8" OD pipes)
Barbed Fittings; 14 PSI Spring Included
Stainless Steel V-Band Flanges and Sealing Rings; Easy to Remove Locking Collar for Fast Spring Changes

Wastegates provide a means to control the boost pressure of the turbo charged engine. Wastegates work to bypass exhaust flow from the turbine wheel. Bypassing the exhaust flow reduces the power driving the turbine wheel to match the power required for a given boost level. Similar to the BOV, the Wastegates uses boost pressure and spring force to regulate the flow bypassing the turbine. Wastegates are bolted to exhaust manifold or header. The advantage of external Wastegates is that the bypassed flow can be reintroduced into the exhaust stream further downstream of the turbine. This tends to improve the turbine's performance.
