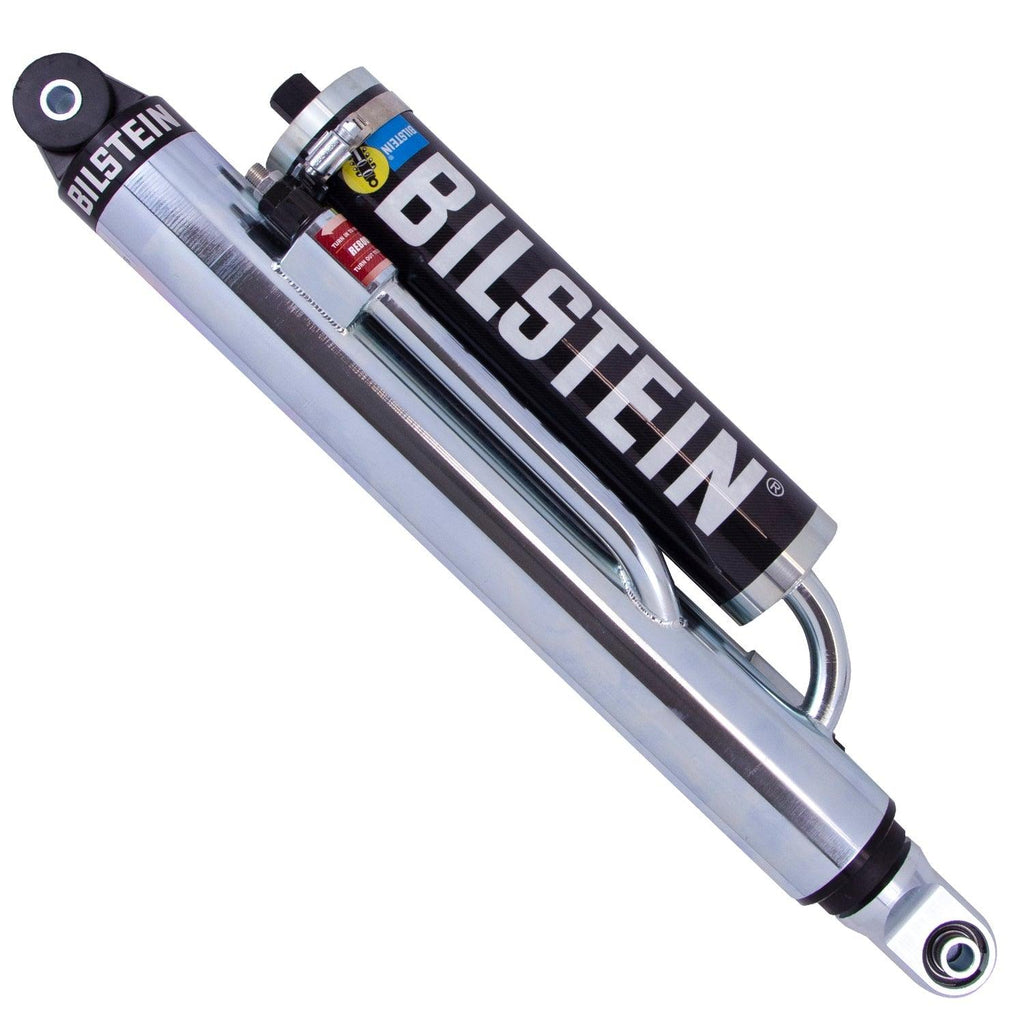

33-269573 Bilstein Shock Absorbers
Regular price $1,348.10 $1,348.10
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock...
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
Attributes:
- GTIN: 00651860803968
- Brand Name: Bilstein
- Collapsed Length (MM): 546.1
- Series: M 9200 (Bypass)
- Extended Length (IN): 33.50
- Reservoir: Yes
- Lower Mount Type: Eye .5x1.5in
- Optional Reservoir Clamp: N/A
- Finish: Zinc Plated
- Body Diameter (ID): 60mm
- Spring Seat Included: No
- Internal Design: Monotube
- Mount Type: Eye-to-Eye
- Upper Mount Type: Eye .5x1.5in
- Extended Length (MM): 850.9
- Position: Right
- Boot Included: N/A
- Compression @0.52m/s: Custom
- Body Design: 3-Tube Bypass Screw Top
- Collapsed Length (IN): 21.50
- Collapsed Length (IN) Rounded: 22
- Rebound @0.52m/s: Custom
- Extended Length (IN) Rounded: 34
Extended Information:
- Country of Origin: United States
- Emissions : Released
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 33.5000 x 11.8800 x 8.8800 inches
- Weight: 25.1000 lb
