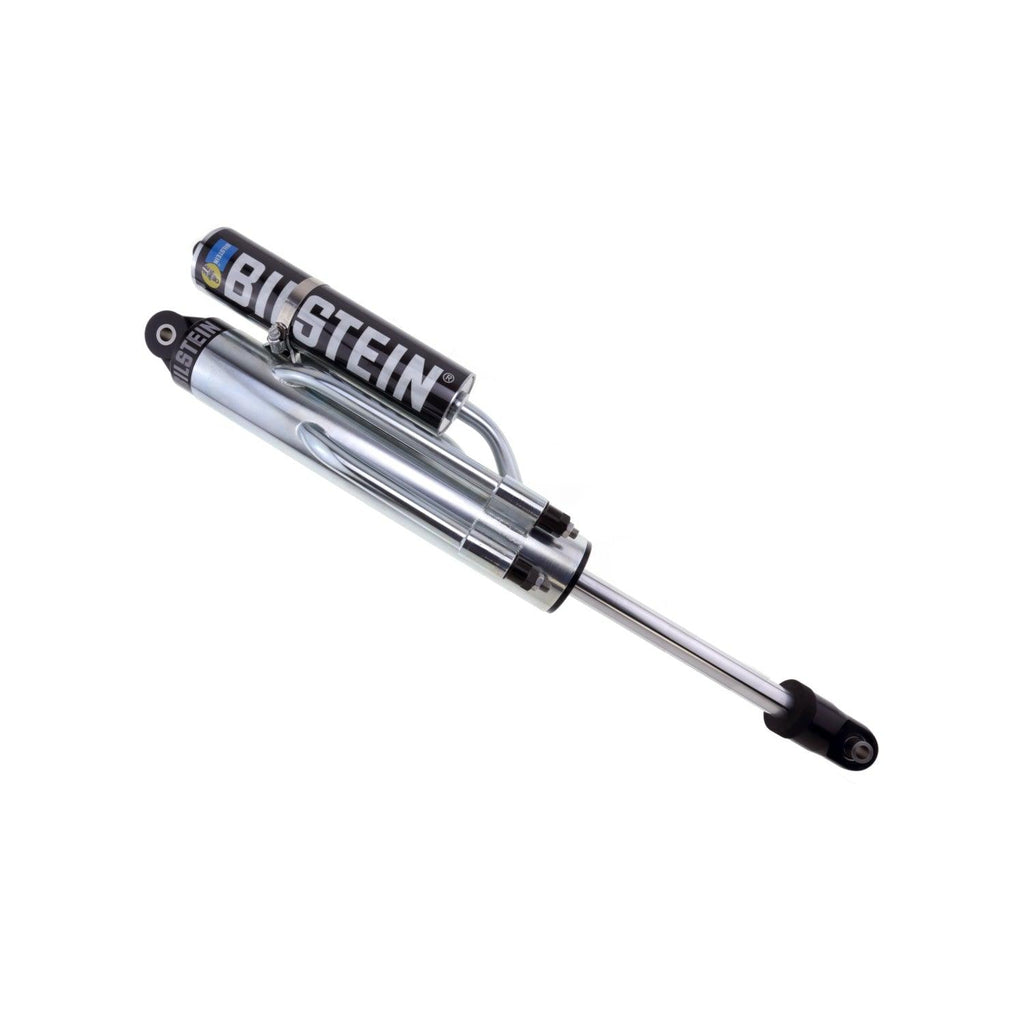

33-241210 Bilstein Shock Absorbers
Regular price $0.00 $0.00
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock...
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
Attributes:
- GTIN: 00651860745824
- Brand Name: Bilstein
- Internal Design: Monotube
- Extended Length (IN) Rounded: 30
- Rebound @0.52m/s: Custom
- Extended Length (IN): 29.50
- Body Diameter (ID): 70mm
- Series: M 9200 (Bypass)
- Collapsed Length (IN) Rounded: 20
- Body Design: 4-Tube Bypass Screw Top
- Compression @0.52m/s: Custom
- Upper Mount Type: Eye .5x1.5in
- Boot Included: N/A
- Lower Mount Type: Eye .5x1.5in
- Mount Type: Eye-to-Eye
- Collapsed Length (MM): 495.3
- Extended Length (MM): 749.3
- Spring Seat Included: No
- Collapsed Length (IN): 19.50
- Finish: Zinc Plated
- Reservoir: Yes
- Optional Reservoir Clamp: N/A
Extended Information:
- Country of Origin: United States
- Emissions : Released
- Life Cycle Status: Discontinued
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 36.0000 x 7.5000 x 4.5000 inches
- Weight: 24.1500 lb
PDF:
