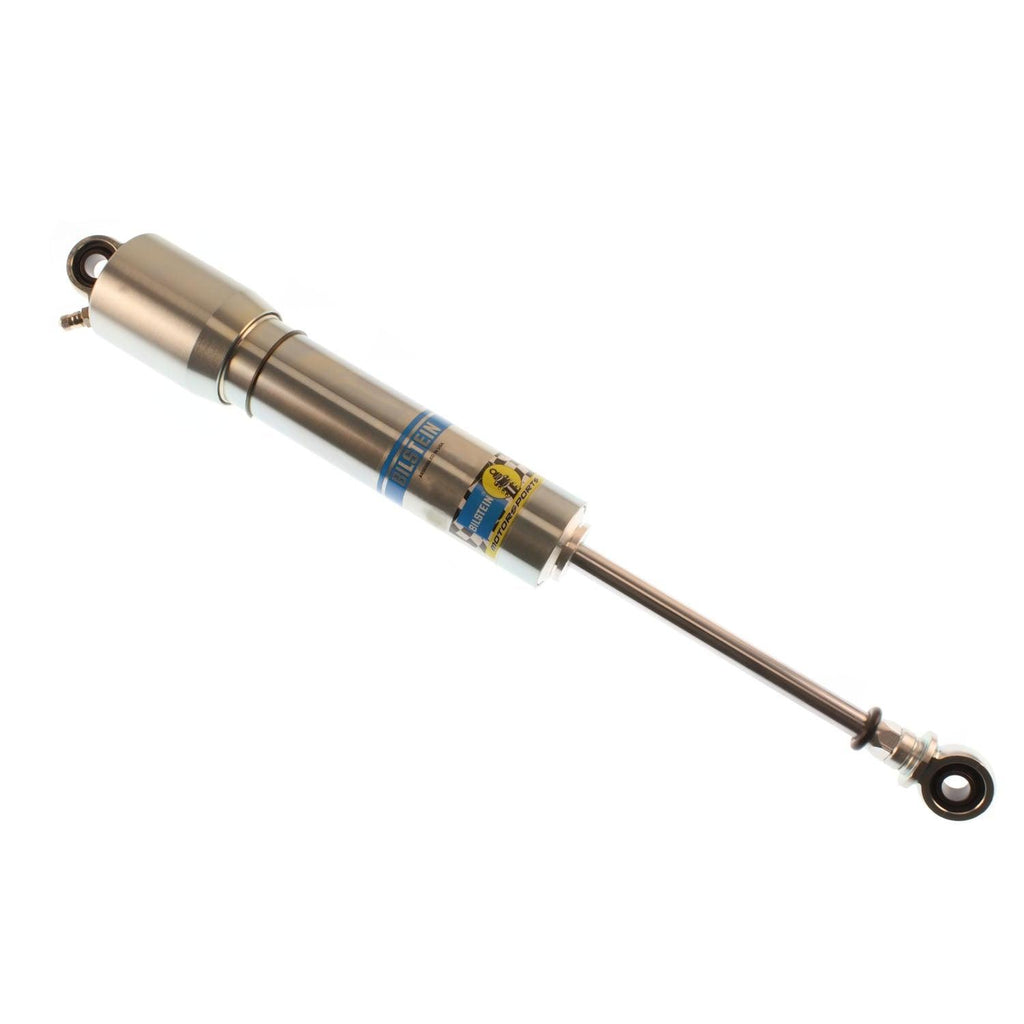

33-233512 Bilstein Shock Absorbers - greatparts
Bilstein

33-233512 Bilstein Shock Absorbers

: In stock

: Shock Absorber

: Bilstein

$0.00 $0.00

Bilstein XVS-S Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers...
$0.00
Add to wishlist

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Category:

Tags:

files/paymentmethods-ezgif.com-avif-to-png-converter.png
Bilstein XVS-S Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable via an integrated Schrader valve. The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS-S Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance.

Attributes:

  • GTIN: 00651860731148
  • Brand Name: Bilstein
  • Boot Included: No
  • Series: XVS-S Series
  • Collapsed Length (IN): 15.24
  • Extended Length (IN): 22.66
  • Extended Length (MM): 575.5
  • Compression @0.52m/s: 765
  • Upper Mount Type: 1/2in Heim
  • Piston Type: Digressive
  • Body Diameter (ID): 46mm
  • Adjustable Damping: Non-Adjustable
  • Finish: Zinc Plated
  • Spring Seat Included: No
  • Body Material: Steel
  • Lower Mount Type: 1/2in Heim
  • Valving Identifier: 3030
  • Rebound @0.52m/s: 1015
  • Internal Design: Monotube
  • Body Design: Smooth Body (Non-Coilover)
  • Collapsed Length (MM): 387.0

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Discontinued

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 26.8000 x 2.9500 x 2.9500 inches
  • Weight: 5.3600 lb
